How To Test The Camshaft Position Sensor

Hey there, fellow gearhead! So, your car’s acting a little… weird? Maybe it’s sputtering, or just won’t start at all. Don’t panic! It could be something as simple, or as notoriously tricky, as the camshaft position sensor. Yeah, that little guy. He’s like the conductor of your engine’s orchestra, making sure everything is in time. And when the conductor drops his baton, well, things get messy.

Think of it this way: your engine has two main timing sensors – the crankshaft position sensor and the camshaft position sensor. They work together, like a dynamic duo, to tell the engine computer (ECU) exactly where the pistons are and when to fire those spark plugs. If one of them is being a slacker, the whole operation can go haywire. So, if you’re noticing some performance hiccups, this little sensor might be your culprit. Let’s dive in, shall we?

First Things First: What Even IS a Camshaft Position Sensor?

Alright, so picture this: inside your engine, you’ve got camshafts. Their job? To open and close your engine’s valves, letting in that precious air-fuel mixture and then letting out the exhaust. Pretty important, right? Now, the camshaft position sensor, or CMP sensor for short (because who has time to say the whole thing?), is like a tiny detective. It’s constantly keeping an eye on the camshafts and reporting their position back to the ECU. It’s not about how fast the camshaft is spinning, but where it’s at in its rotation. Think of it like knowing if your hands are at 12 o'clock or 3 o'clock on a clock face. Vital information!

Why is this so crucial? Well, without knowing the camshaft’s exact position, the ECU wouldn't know precisely when to inject fuel or when to spark. It’s like trying to conduct a symphony blindfolded and without a metronome. Chaos, my friends. Utter, complete, engine-shaking chaos.

So, What Are the Signs This Little Guy is Giving You the Cold Shoulder?

You might be wondering, "How do I know if it's this sensor and not, you know, a gremlin in the wiring harness or a mischievous squirrel chewing through something important?" Good question! There are definitely some telltale signs.

The most common, and probably the most annoying, is a check engine light. Yep, that dreaded little glow. It’s like the car’s way of saying, "Psst, hey you! Something's not quite right over here!" And usually, if it's the CMP sensor, the code will point to its electrical circuit or signal.

Then there's the rough idling. Your car might feel like it's having a mild case of the shakes, especially when you're stopped at a light. It's not a smooth purr; it's more of a… hesitant cough.

Misfires are another biggie. You might feel a jolt or a stumble when you accelerate. It’s like the engine is skipping a beat, unable to keep up with the rhythm.

And the worst-case scenario? Your car might just refuse to start. No start condition. It turns over, but it just won't catch. It’s the automotive equivalent of giving up. Thanks a lot, camshaft position sensor.

Sometimes, you might even experience a stalling engine, especially when it’s hot. It’s like it’s overheating from the pressure and just decides to take a nap. And then there's the potential for reduced fuel economy. If the engine isn't timing things perfectly, it's going to be more of a gas guzzler, and nobody wants that, right? Your wallet will thank you for checking this out!

Let’s Get Our Hands Dirty (Figuratively, For Now!)

Okay, so you’ve got a suspicion. Now what? We gotta do some detective work. And don't worry, this isn’t rocket science. Well, it's not entirely rocket science. It's more like… automotive detective work. You might need a few tools, but nothing too wild.

First off, you’ll need a multimeter. This is your best friend for testing electrical components. If you don't have one, they're pretty affordable and a great addition to any DIY mechanic’s toolkit. Think of it as your car’s personal doctor, measuring its vital signs.

You'll also likely need a scan tool. This is the gizmo that reads those pesky error codes from your ECU. If your check engine light is on, this is the first thing you should probably use. It’s like getting a preliminary diagnosis from a specialist. It's also good to have a wiring diagram for your specific car. This is your roadmap, showing you where everything is and how it should be connected. Trust me, you don’t want to be guessing with wires!

And, of course, some basic hand tools like sockets, wrenches, and maybe a flathead screwdriver. Nothing too fancy, but enough to get you in there and around the sensor.

Step 1: The Scan Tool Shenanigans

This is the easiest part, and honestly, you should have done this first. Plug in your scan tool to your car's OBD-II port (usually located under the dashboard on the driver's side). Turn the ignition key to the ‘ON’ position, but don't start the engine. Your scan tool should power up and begin communicating with the ECU.

Now, navigate through the menu to retrieve diagnostic trouble codes (DTCs). You're looking for codes that relate to the camshaft position sensor. Common ones include P0340 (Camshaft Position Sensor Circuit Malfunction), P0341 (Camshaft Position Sensor Circuit Range/Performance), P0342 (Camshaft Position Sensor Circuit Low Input), and P0343 (Camshaft Position Sensor Circuit High Input). If you see one of these, it's a pretty strong indicator that your CMP sensor is giving you grief. But, and this is a big BUT, a code doesn't always mean the sensor itself is bad. It could be a wiring issue, a faulty ECU, or even a problem with the reluctor ring on the camshaft. So, this is your first clue, not your final verdict.

Once you’ve got the code, write it down! Don't just take a blurry photo and hope for the best. Write it down, like a detective jotting down a crucial piece of evidence. Then, you can do some research on that specific code for your make and model. This will give you a better idea of what you're up against.

Step 2: Locate That Sneaky Sensor

Alright, time to get your hands a little grimy. The camshaft position sensor is usually located on the cylinder head, near the front of the engine, where the camshafts are. It often looks like a small, cylindrical or rectangular component with an electrical connector plugged into it. It might be held in place by a single bolt.

Sometimes, it's integrated into a larger component, which can make things a bit more… exciting. You might need to consult your car’s service manual or an online diagram to pinpoint its exact location. Don't be afraid to look up videos for your specific car model on YouTube! Seeing someone else do it can be a huge help. It’s like having a friend whisper instructions in your ear.

It’s usually pretty accessible, but sometimes it’s hiding behind a bunch of other engine gubbins. You might have to remove a few things to get to it. Take pictures as you go, people! This will save you a headache when it's time to put it all back together. Seriously, future you will send past you a thank-you note. Or at least not curse them out.

Step 3: The Multimeter Showdown – Testing the Sensor’s Electrical Health

Now for the real magic (or in this case, electrical testing). We’re going to use our trusty multimeter to check the sensor’s resistance and voltage. This is where things can get a little technical, but we’ll take it step-by-step.

First, you’ll want to disconnect the electrical connector from the camshaft position sensor. Be gentle! These connectors can be brittle, especially on older cars. You don’t want to break it, because then you’ll have another problem to fix.

Next, consult your car’s wiring diagram. You need to know which pins on the sensor connector correspond to the signal wire, the ground wire, and possibly a reference voltage wire (depending on the sensor type). This is why that diagram is so important! Don’t wing it here.

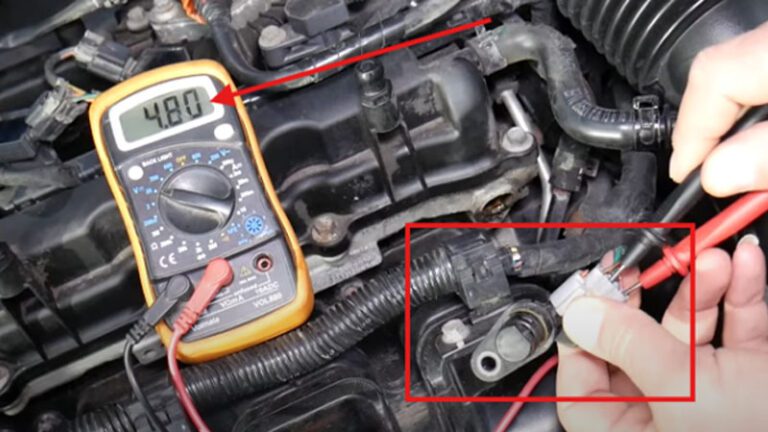

Testing Resistance: Set your multimeter to the resistance setting (Ω). Touch the probes to the relevant pins on the sensor itself (not the harness side, unless you know what you're doing). Your car’s service manual will have the specific resistance values your sensor should have when it's good. If the reading is significantly out of spec, or if you get an open circuit (OL) or a dead short (0 ohms), the sensor is likely bad. This is like checking if the wires inside are all connected properly. If there’s a break, or a direct connection where there shouldn’t be, that’s a bad sign.

Testing for Voltage: This part is a bit different depending on the type of CMP sensor (Hall effect or variable reluctance). For a Hall effect sensor, you’ll typically need to check for a reference voltage (usually 5V or 12V) coming from the ECU to the sensor, and then check for a pulsed signal output when the engine is being cranked. For a variable reluctance sensor, you’re usually checking for an AC voltage output when the engine is cranked.

To test for voltage, you’ll need to reconnect the sensor connector, but leave your multimeter probes connected to the harness side, or use back-probing tools to access the pins within the connector. You'll also need an assistant to crank the engine for you. So, grab a friend, a family member, or a very patient pet (just kidding!).

With the ignition on (engine not running), check for the reference voltage. Then, have your assistant crank the engine. If you have a Hall effect sensor, you should see a square wave pattern on your multimeter (if it has a digital display that can show this) or a fluctuating voltage reading. For a variable reluctance sensor, you should see an AC voltage reading that fluctuates as the engine cranks. If you’re not getting any voltage, or the readings are erratic, that’s another strong indicator of a problem. It could be the sensor itself, or it could be a wiring issue between the ECU and the sensor.

A quick tip: If your multimeter doesn't have a frequency or pulse setting, you might not be able to definitively test the output signal. In that case, if the resistance test is good, and you're still getting codes, it might be time to consider a known good sensor for testing or a professional diagnosis. Don't get discouraged if you can't test every single aspect perfectly with just a basic multimeter.

Step 4: Checking the Wiring Harness – The Unsung Hero (or Villain!)

Sometimes, the sensor itself is perfectly fine, but the wires connecting it to the ECU are the problem. This is where you become a wire detective. Wiggle the wiring harness gently while the engine is being cranked. Does the signal or voltage reading change on your multimeter? Does the engine start to act differently?

Look for any visible signs of damage: chafed wires, melted insulation, corroded connectors. rodents are notorious for chewing through wiring, so keep an eye out for any gnawed bits. If you find any damaged wires, you'll need to repair them. This might involve splicing in new wire or replacing sections of the harness. Again, your wiring diagram is your best friend here.

Pay close attention to the connectors, both on the sensor and on the ECU side. Are they clean? Are the pins bent or corroded? A little electrical contact cleaner can work wonders for cleaning up dirty connectors. Make sure the pins are making good, solid contact. A loose connection is just as bad as a broken wire!

Step 5: Consider the Camshaft Reluctor Ring

This is a bit more advanced, and usually requires removing the camshaft to inspect. The camshaft position sensor reads a reluctor ring (also called a tone ring or trigger wheel) that’s attached to the camshaft. This ring has teeth or notches on it that the sensor detects. If this ring is damaged, has missing teeth, or is contaminated with debris, it can throw off the sensor’s reading.

This is less common than a bad sensor or wiring issue, but it’s definitely a possibility, especially if you’ve ruled out other things. If you suspect this, it's probably time to call in a professional. Unless you're feeling particularly adventurous and have a spare weekend (and a good set of tools).

Step 6: The "Swap 'Til You Drop" Method (Use with Caution!)

If you've done all the tests and are still scratching your head, you might consider the "swap 'til you drop" method. This involves replacing the camshaft position sensor with a known good one. If the problem goes away, great! You found your culprit. However, this can be an expensive way to diagnose a problem if you’re just guessing.

It's best to only do this if you're reasonably confident it's the sensor, or if you can borrow one from a friend or get a reputable, returnable part. Always try to do the electrical tests first. It's the more scientific and cost-effective approach.

When In Doubt, Call in the Cavalry!

Look, nobody expects you to be a master mechanic overnight. If you've gone through these steps and you're still feeling lost, or if the job feels beyond your comfort level, there’s absolutely no shame in taking your car to a qualified mechanic. They have specialized tools and years of experience that can help them pinpoint the problem quickly and efficiently.

Sometimes, a diagnosis fee is well worth it to avoid further damage or unnecessary parts replacement. Plus, it’s a great learning opportunity to watch a pro at work! Just remember to ask them to explain what they found and what they did. Knowledge is power, my friend!

So, there you have it! A little dive into the mysterious world of the camshaft position sensor. It’s a small part, but boy, can it cause a big headache. Hopefully, this guide gives you the confidence to start troubleshooting. Remember, take your time, be methodical, and don’t be afraid to ask for help. Happy wrenching!
