How To Jump A Millivolt Gas Valve

I remember the first time I ever really got my hands dirty with a gas appliance. It was a brutal winter day, probably one of those where your breath freezes before it leaves your lips, and my neighbor’s ancient boiler decided to throw in the towel. Or rather, it decided to not throw in the towel, if you catch my drift. The pilot light was stubbornly refusing to stay lit, and the whole house was rapidly cooling down to the temperature of a walk-in freezer. My neighbor, bless his heart, was frantically wrapping himself in blankets and muttering about frozen pipes. He’d called a plumber, of course, but the earliest anyone could get out was the next morning. That’s when he looked at me, this wide-eyed kid who’d once successfully replaced a light fixture, and asked, “Do you… do you think you could take a look?”

My stomach did a little flip-flop. Gas? Millivolt? I’d heard the terms, sure, but actually touching it? It felt like being asked to defuse a bomb with a butter knife. But the desperation in his eyes, and the prospect of my own teeth chattering by midnight, spurred me on. I ended up spending the next few hours hunched over that old beast, armed with a flashlight, a multimeter, and a healthy dose of sheer willpower. Turns out, sometimes a little curiosity and a willingness to get a bit grimy is all you need to get things humming again. And that, my friends, is how we get to talking about jumping a millivolt gas valve.

So, What Exactly Is a Millivolt Gas Valve?

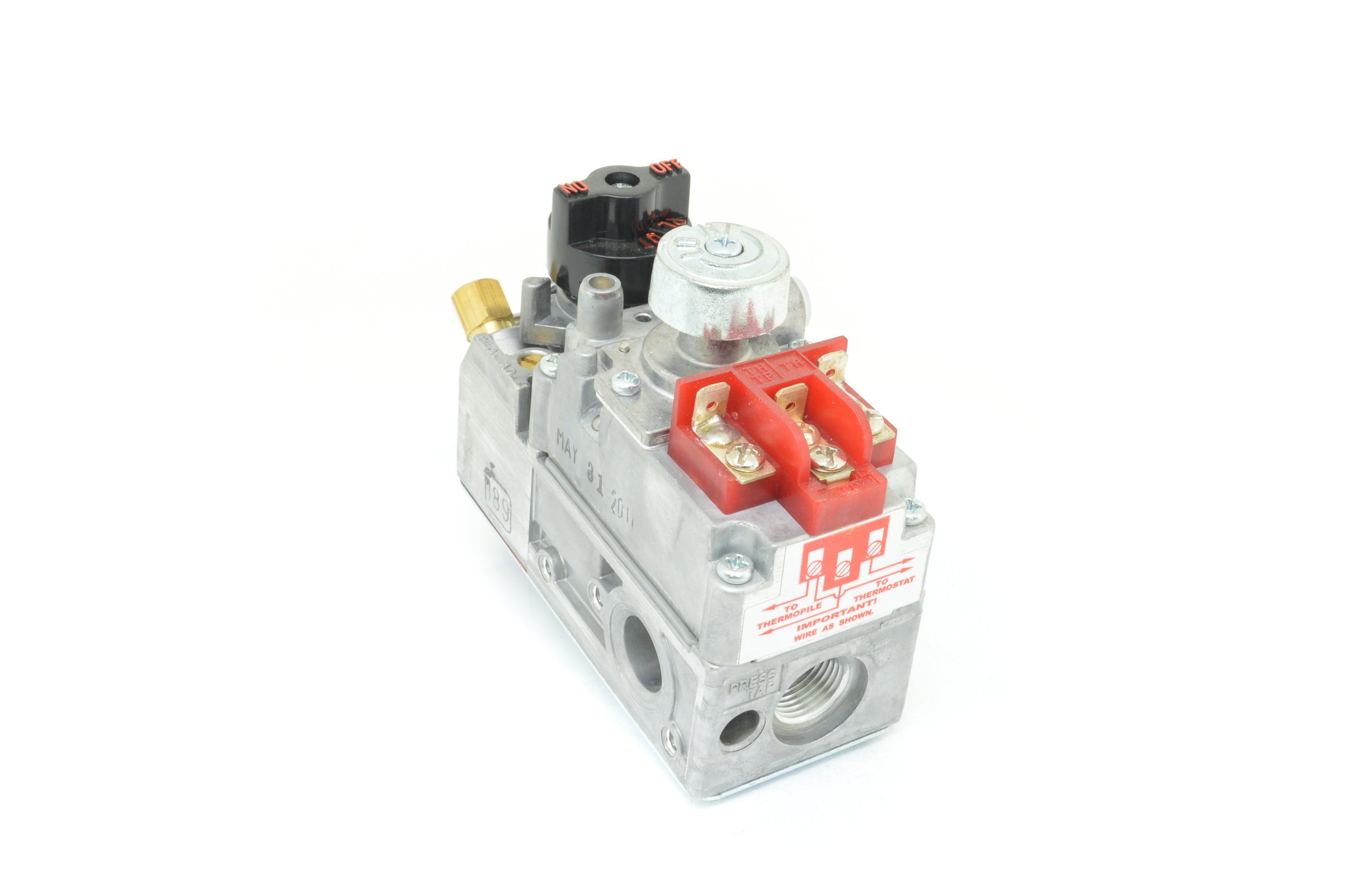

Before we start playing plumber-by-proxy, let’s get our bearings. You’ve probably seen them, even if you didn’t know their fancy name. They’re those common, often chunky, brass-colored valves you find on older gas fireplaces, water heaters, and, yes, those aforementioned boilers. The "millivolt" part is the key here. Unlike their fancier, more modern counterparts that rely on household electricity (120 volts, anyone?), these guys operate on a tiny electrical current – we’re talking millivolts, hence the name.

Where does this minuscule power come from, you ask? It’s generated by a thermocouple. Think of it as a miniature power plant. When the pilot light heats up the tip of the thermocouple, it creates a small electrical voltage. This voltage is just enough to signal the gas valve to open, allowing the main burner to light. It’s a beautifully simple, self-contained system. And when it works, it’s brilliant! No need for external power, which makes it great for areas where electricity might be unreliable or simply non-existent.

But, like all things, they can get a bit… temperamental. And that’s where our little adventure into “jumping” comes in.

The Pilot Light Predicament: When Things Go South

The most common issue you’ll encounter with a millivolt system is a pilot light that just won’t stay lit. You flick the igniter, you hear a little whoosh, it burns brightly for a few seconds, and then… poof! Gone. It’s enough to make you want to trade in your gas appliance for a good old-fashioned wood-burning stove. (Okay, maybe not that drastic, but you get the feeling.)

There are a few reasons this can happen:

• A dirty or worn-out thermocouple: This is the most frequent culprit. The tip can get coated with soot, or the metal can degrade over time, preventing it from generating enough voltage.
• Improper pilot flame: The pilot flame needs to be just the right size and shape to consistently heat the thermocouple. Too small, and it can’t generate enough power. Too large, and it can actually damage the thermocouple or become unstable.
• A faulty gas valve: Less common, but possible. The internal workings of the valve might be sticking or failing.
• Air in the gas line: Sometimes, after the gas has been off for a while, you might get some air in the line, making it harder for the pilot to light initially.

Now, you could just replace the thermocouple. And often, that’s the best long-term solution. But what if it’s late on a Saturday night, the temperature is plummeting, and the stores are closed? Or what if you just want to understand what’s going on before you go buying parts?

The Art (and Science) of Jumping the Millivolt Gas Valve

This is where the "jump" comes in. It’s not a literal jump, unfortunately. No need for athletic prowess here. Instead, we’re talking about a little diagnostic trick. Essentially, we’re going to bypass the thermocouple temporarily to see if the gas valve itself is the problem, or if it’s just the thermocouple not doing its job.

Disclaimer Time (and it’s a big one): Working with gas is serious business. If you are not comfortable with this, or if you suspect a gas leak, STOP IMMEDIATELY and call a qualified professional. Seriously. Gas leaks are not a DIY situation. This guide is for informational purposes and for those who are reasonably handy and have a good understanding of basic electrical principles. Your safety is paramount.

Step 1: Safety First, Always!

This cannot be stressed enough. Before you even think about touching anything:

• Turn off the gas supply. Most gas appliances have a shut-off valve on the main gas line leading to the appliance. It’s usually a lever. Turn it perpendicular to the pipe to shut it off.
• Ensure good ventilation. Open a window or two. Even if you don’t smell gas, it’s always a good idea when working with gas appliances.
• Gather your tools. You’ll need a flashlight (a headlamp is even better!), a multimeter (set to measure DC millivolts), and potentially a small screwdriver or wrench depending on your specific valve.

Got that? Good. Let’s proceed with caution.

Step 2: Locate Your Millivolt Gas Valve and Thermocouple

This is usually pretty straightforward. Look for the cluster of pipes and wires connected to the main burner assembly. The gas valve itself is often a rectangular or cylindrical brass component. The thermocouple is a thin, copper-colored rod that sticks out of the pilot light assembly and is positioned directly in the path of the pilot flame. It will have a wire running from its tip to the gas valve.

You might also see a thermo-generator. This is a more robust version of the thermocouple, often a bit thicker and sometimes with two wires. The principle is the same, though. It generates power from heat.

Step 3: Disconnect the Thermocouple from the Gas Valve

Now, the critical part. You need to disconnect the wire coming from the thermocouple (or thermo-generator) from the gas valve. This is usually held in place by a screw. Carefully unscrew it. Be gentle; these connections can be delicate.

Once it’s disconnected, you’ve effectively isolated the thermocouple’s power source from the valve.

Step 4: Reconnect the Gas and Light the Pilot

This is where the "jump" happens conceptually. We’re going to try and see if the valve will open without the thermocouple signal. You have two main ways to approach this, depending on your comfort level and the tools you have.

Method A: The Multimeter Jump (Recommended for Diagnostics)

This is the safest and most informative way to test. With the thermocouple wire disconnected from the gas valve:

• Turn the gas supply back on.
• Turn your multimeter to the DC millivolts setting.
• Place the positive probe of your multimeter on the end of the thermocouple wire you just disconnected.
• Place the negative probe on a good ground point on the gas valve body.
• Now, light the pilot light. Hold it there for about 30 seconds to a minute, giving the thermocouple time to heat up.

What are you looking for?

• If you see a reading on your multimeter (typically 15-30 millivolts, but check your appliance’s manual): This means your thermocouple is generating power. The problem is likely with the gas valve itself, or a loose connection elsewhere in the circuit. The valve isn't responding to a good signal.
• If you see little to no reading on your multimeter: Your thermocouple is likely bad, or the pilot flame isn’t hot enough to heat it properly.

Now, for the “jump” part using the multimeter:

While the pilot is lit and you’re getting a millivolt reading (or even if you aren’t, but suspect the valve), you can try to force the valve open. This requires a bit of finesse and is where many people get nervous. You're essentially trying to replicate the signal the thermocouple should be sending.

Here’s the tricky bit: You need to create a temporary circuit that mimics the thermocouple's output. Many HVAC technicians use a special tool for this, but for a DIYer, a small, known voltage source can be used carefully. However, this is where things get dicey, and I strongly advise against it unless you are absolutely confident.

A much safer diagnostic step is to simply observe the millivolt reading. If it’s there, the valve is the suspect. If it’s not, the thermocouple or pilot flame is.

A more practical “jump” test for the valve itself, if you suspect the valve:

This is less of a direct electrical jump and more of a physical check. When the pilot is lit and you've confirmed the thermocouple is producing voltage (or you think it should be), try to gently push in the pilot assembly on the gas valve. Some valves have a button or plunger that you can press. If pressing this allows the main burner to ignite, it means the valve is probably functioning, but the pilot light isn’t triggering it effectively. If pressing it does nothing, the valve itself might be the issue.

Method B: The "Direct Jump" (Use with Extreme Caution!)

This method is what most people think of as "jumping" the valve, and it involves using a small jumper wire or even the disconnected thermocouple wire itself to try and bridge the gap and trick the valve into opening. Again, this is a risky maneuver and should only be attempted if you are very comfortable and have ruled out other obvious issues.

• Ensure the gas is off again.
• Light the pilot light.
• Hold the pilot flame directly onto the tip of the thermocouple for at least 30 seconds.
• While holding the pilot flame there, and with the thermocouple wire disconnected from the valve, quickly touch the metal end of the thermocouple wire to the screw terminal on the gas valve where it was originally connected.

What happens?

• If the main burner ignites: Hooray! Your gas valve is likely good, and the issue was indeed the thermocouple not getting hot enough or not generating enough power. You’ll likely need to replace the thermocouple.
• If the main burner does not ignite: This suggests the problem might be with the gas valve itself, or there’s an issue with the gas flow to the main burner.

This direct jump is a crude test. It’s like giving the valve a little electric nudge to see if it wakes up. If it does, it means the valve can open, but the normal signal from the thermocouple isn’t strong enough. If it doesn’t, the valve itself might be the problem.

Step 5: Reassembly and Testing

If your test indicates a bad thermocouple (i.e., you got a millivolt reading but no main burner ignition, or the direct jump didn't work), it’s time to replace it. They’re usually pretty inexpensive and available at hardware stores or online.

If your test indicates a faulty gas valve, it’s time to call in the professionals. Gas valves are critical safety components, and replacing one is not a beginner DIY job.

If everything seems to be working during your diagnostic jumps:

• Turn off the gas supply.
• Reconnect the thermocouple wire securely to the gas valve terminal.
• Turn the gas supply back on.
• Follow the manufacturer’s instructions to light the pilot light.
• Once the pilot is lit and stable, activate the thermostat or control to call for heat.

Cross your fingers and hope for the best!

When to Call the Pros

Look, I love a good DIY fix as much as the next person. There’s a certain satisfaction in figuring something out and getting it working again with your own two hands. But there are times when you just have to admit defeat and call in the cavalry. Working with gas appliances, especially older millivolt systems, carries inherent risks. If you:

• Smell gas at any point: Leave the area immediately and call your gas company from outside.
• Are uncomfortable with any step: Seriously, don’t push it. A few bucks for a service call is much cheaper than the alternative.
• Don’t have the right tools: A multimeter is pretty essential for proper diagnostics.
• Suspect a gas leak: This is non-negotiable.
• The appliance is still not working after your attempts: It’s time to hand it over to someone with more experience.

Jumping a millivolt gas valve is a bit of a relic of older appliance technology, a clever bit of engineering that prioritized simplicity and independence from the grid. Understanding how it works, and how to perform these basic diagnostic jumps, can be incredibly empowering. But remember, with great power comes great responsibility. Or in this case, with flammable gas comes the responsibility to be extra, extra careful.

So, go forth, be curious, be brave (but not reckless), and may your pilot light burn ever so brightly!
