Aam 11.5 Pinion Seal Replacement

So, picture this. It was a sweltering July afternoon, the kind where the air feels thick enough to chew. I was halfway through a rather ambitious road trip, windows down, questionable 80s power ballads blasting, and feeling like a total adventurer. Then, as I rounded a bend, I noticed a… a rather distinct aroma wafting from underneath the truck. Not the usual "hot engine and slightly questionable exhaust" smell. No, this was more of a, dare I say, greasy perfume. A subtle, yet undeniably present, whiff of something not quite right. My internal alarm bells, usually reserved for spotting rogue squirrels or remembering I forgot to pay a bill, started to tinkle. A quick peek under the rig confirmed my suspicions. There it was: a tiny, but rather persistent, drip of differential fluid making its way onto my pristine driveway (which, by the way, is still recovering from that oil change incident last month. Don't ask.)

Ah, the joys of classic vehicle ownership. You learn to speak fluent "mechanical weirdness." This little drip? It was a classic case of a failing pinion seal. Specifically, the pinion seal on my trusty old AAM 11.5 rear differential. If you're not familiar, that's the big, burly rear end that handles all the heavy lifting on many of your favorite trucks. And like any hardworking component, it can eventually spring a leak. It’s not usually a catastrophic failure, mind you, but left unchecked, it can lead to low fluid levels, overheating, and eventually, some very expensive repairs. So, my friends, let's talk about tackling this little oil leak, shall we?

The "Oh Crap, There's a Leak" Moment

That initial smell, that little drip. It's the universe's way of giving you a gentle nudge. Or sometimes, a rather insistent shove. For me, it was the former. I remember thinking, "Okay, this is probably just a seal. How hard can it be?" Famous last words, right? But honestly, for a DIYer with a modicum of patience and a few basic tools, replacing a pinion seal on an AAM 11.5 is absolutely doable. It’s not a five-minute job while you sip your coffee, but it’s definitely within reach.

The AAM 11.5 is a pretty robust unit. You'll find it in a lot of heavy-duty trucks, especially from the early 2000s onwards. Think of it as the workhorse of the differential world. It’s designed to handle serious loads and plenty of abuse. But even workhorses need a little TLC. The pinion seal is essentially a rubber gasket that sits where the driveshaft enters the differential housing. Its job is to keep that precious gear oil in and all the nasty dirt and grime out. When it starts to go, that keeping-oil-in part becomes a bit… optional.

Why Bother? The Consequences of a Leaky Seal

Before we dive headfirst into the greasy abyss, let’s chat about why you shouldn't just ignore that little drip. Besides the obvious environmental concern of leaving oily patches wherever you go (your lawn will thank you for this fix, trust me), a low differential fluid level can wreak havoc. Gear oil is the lifeblood of your differential. It lubricates all those intricate gears, keeps them cool, and prevents premature wear. When that fluid level drops, things start to get… unhappy.

Imagine running your engine without oil. Not pretty, right? Same principle applies here, just at a slower, albeit still damaging, pace. Overheating, increased friction, and eventual gear damage can lead to a bill that will make your eyes water. So, think of this as preventative maintenance, a little investment of time and elbow grease to save yourself a much larger headache down the road. Plus, there's a certain satisfaction in fixing something yourself, wouldn't you agree?

Gathering Your Arsenal: Tools and Parts

Alright, enough preamble. Let's get down to business. You're going to need a few things before you can get your hands dirty. Don’t worry, it’s not rocket science, but having the right gear makes the job infinitely smoother.

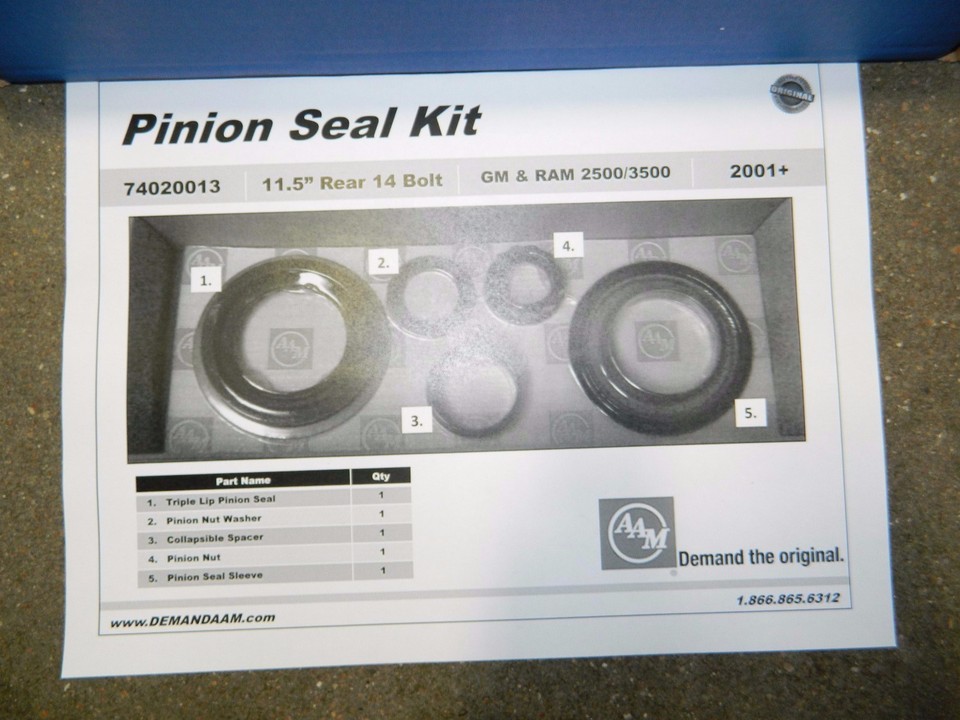

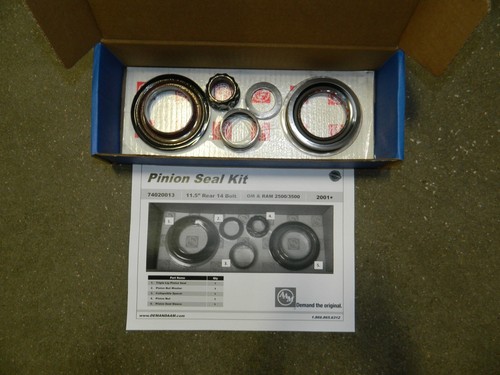

First, the pinion seal itself. Make sure you get the correct one for your specific truck and AAM 11.5 application. A quick trip to your local auto parts store or an online order will sort you out. They’re not expensive, which is good news.

Next, some differential fluid. You’ll need to drain and refill it anyway, so grab a few quarts of the correct weight and type. Check your owner's manual or a good repair guide for the exact specifications. Don't skimp on quality here; good fluid is essential.

You'll also need a drain pan for the old fluid. Make sure it's big enough to hold all of it. You don’t want a surprise oil slick on your garage floor. Trust me on this one. Been there, done that, bought the industrial-strength degreaser.

As for tools, here’s a rough rundown:

• Socket set: You’ll need a socket for the driveshaft bolts, and likely a larger one for the pinion nut if you need to remove the yoke.
• Wrench set: For any bolts that don't require a socket.
• Breaker bar: That pinion nut can be a real stubborn mule. A breaker bar will be your best friend.
• Torque wrench: Absolutely crucial for reassembling everything correctly, especially that pinion nut. Get one that covers the lower torque ranges.
• Pry bar or flathead screwdriver: For gently levering the old seal out.
• Seal driver or a large socket: To install the new seal evenly. A dedicated seal driver is ideal, but a socket of the right size often works in a pinch.
• Gloves: Unless you enjoy having greasy hands for days.
• Safety glasses: Always a good idea. Bits of rust or metal can fly.
• Shop rags: You'll go through a lot of these.
• Jack and jack stands: For safely lifting and supporting your vehicle. Never, ever work under a vehicle supported only by a jack.
• Wheel chocks: To prevent the vehicle from rolling.

And finally, a good dose of patience and determination. This is the most important part, folks. You might run into a stubborn bolt, a tricky angle, or just feel a bit overwhelmed. That’s okay. Take a deep breath, re-read your instructions, and remember why you’re doing this.

Operation: Pinion Seal Extraction

Okay, car is safely lifted and chocked. Deep breaths. We're going in. The first step is usually to disconnect the driveshaft from the rear differential. You'll find a flange at the end of the driveshaft where it bolts to the pinion yoke. There are typically four bolts here.

Here's a little tip: As you remove these bolts, mark the orientation of the driveshaft to the yoke. You can use a paint pen or a scratch awl. This helps ensure you reassemble it in the same balance, preventing potential vibrations. It’s one of those little things that can save you a world of hurt later.

Once those bolts are out, you can usually wiggle the driveshaft free from the yoke. Sometimes you might need to gently pry it away. Now, here’s where it gets a bit interesting. The pinion yoke is held onto the pinion shaft by a single, large pinion nut. This nut is often torqued to a ridiculously high specification and sometimes has a crush washer or a self-locking nut. This is where that breaker bar and your might come in handy.

You'll need to get the correct size socket for this nut. It's usually a pretty big one. Apply steady, firm pressure. If it’s fighting you, a little bit of penetrating oil can sometimes help. Once it’s loose, remove the nut completely.

Now, the yoke itself. This is often a tight fit. You might be able to wiggle it off by hand, or you might need a two-jaw puller. Be careful not to damage the threads on the pinion shaft. If you're using a puller, apply even pressure. Some guys have had success gently tapping around the yoke with a hammer, but I’d caution against any excessive force. We don’t want to damage the differential housing or the pinion shaft itself.

Once the yoke is off, you’ll see the old pinion seal. It’s usually a pressed-in metal ring with a rubber lip. It might look pretty baked and brittle at this point. You can usually get a flathead screwdriver or a pry bar behind the metal part and pry it out. Again, be careful not to gouge the surface of the differential housing where the seal sits. You want a nice, clean surface for the new seal.

The New Kid on the Block: Installing the Pinion Seal

With the old seal extracted and the bore cleaned up, it’s time for the new seal. Before you even think about putting it in, lightly lubricate the rubber lip of the new seal with some of your fresh gear oil. This helps it slide in easily and prevents damage during installation.

Now, this is where a seal driver is ideal. It’s a tool specifically designed to press seals in evenly. If you don't have one, a socket that is the same diameter as the outer edge of the seal will work. Choose a socket that’s larger than the seal itself but not so large that it’s only contacting the very edge.

Place the new seal over the bore and begin to tap it in with your seal driver or socket and a hammer. You want to tap it in straight and even. Don’t hammer on one side more than the other. Go slowly, tapping gently and checking for squareness. The seal should be driven in until it’s flush with the surface of the differential housing. Don't drive it in too far, as this can damage it.

Once the seal is in, it's time to put the yoke back on. Clean the splines on both the yoke and the pinion shaft thoroughly. Apply a thin layer of anti-seize compound to the splines. This will make future removals so much easier. Slide the yoke back onto the pinion shaft. It should slide on relatively easily. If it’s a bit stubborn, a gentle tap with a rubber mallet might help.

Now comes the critical part: the pinion nut. This is where that torque wrench and precision come into play. The goal here is to achieve the correct preload on the pinion bearings. This is the force that keeps the bearings snug but not overly tight. If it’s too loose, you’ll have play and wear. If it’s too tight, you’ll destroy the bearings quickly.

The torque specification for the pinion nut is crucial and varies by application. You absolutely must consult a service manual for your specific truck. You'll be tightening the nut, checking the rotational torque (the force it takes to turn the yoke), backing it off, and repeating until you achieve the correct specification. This is a process of trial and error, and it’s why having a good torque wrench and patience are so important. Some manuals will even have a procedure for re-using the old crush washer, while others will mandate a new one. Pay close attention to this!

Once you've achieved the correct preload, you’ll need to secure the nut. This usually involves tightening it further to align with a slot in the pinion shaft for a cotter pin. If there’s no slot or it doesn’t align, some vehicles use a locking tab washer or a nylock nut. Again, your service manual is your bible here.

The Fluid Change: Don't Forget the Other Half!

You've come this far, so you’re not going to stop now, right? With the pinion seal and yoke reassembled, it’s time to deal with the differential fluid. You'll find a drain plug on the bottom of the differential housing and a fill plug on the side. Drain all the old fluid into your pan. It's usually dark and smells… well, like old gear oil. It’s a good indication that it was time for a change anyway.

Once it's drained, reinstall the drain plug. Then, using a gear oil pump (they’re cheap and make this job infinitely less messy), fill the differential with the correct type and amount of new fluid. The fill plug is usually located on the side of the housing. You fill it until the fluid just starts to dribble out of the fill plug hole. Reinstall the fill plug.

Finally, reattach the driveshaft to the pinion yoke, making sure to align those marks you made earlier. Tighten those four bolts to the specified torque. And there you have it!

The Moment of Truth (and a Clean Driveway!)

Lower the vehicle, do a final check of all the bolts and nuts you touched. Take it for a short test drive. Listen for any unusual noises. Keep an eye out for any drips under the truck for the next few days. You’ll want to make sure that little oily perfume is gone for good!

Replacing a pinion seal on an AAM 11.5 isn't the most glamorous job, but it's a very satisfying one. It's a task that, with a bit of research, the right tools, and a healthy dose of persistence, most DIYers can tackle. You'll save yourself some money, gain valuable experience, and most importantly, keep your trusty truck running smoothly for many more miles to come. And hey, if all else fails, there's always the satisfaction of knowing you gave it a darn good try. Happy wrenching!
